#include <tinyxml.h>

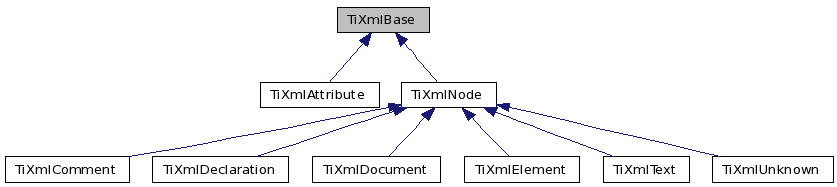

Inheritance diagram for TiXmlBase:
Public Member Functions | |
| TiXmlBase () | |
| virtual | ~TiXmlBase () |
| virtual void | Print (FILE *cfile, int depth) const =0 |
| All TinyXml classes can print themselves to a filestream. | |
Static Public Member Functions | |
| static void | SetCondenseWhiteSpace (bool condense) |
| The world does not agree on whether white space should be kept or not. | |
| static bool | IsWhiteSpaceCondensed () |
| Return the current white space setting. | |
Protected Types | |
| TIXML_NO_ERROR = 0 | |
| TIXML_ERROR | |
| TIXML_ERROR_OPENING_FILE | |
| TIXML_ERROR_OUT_OF_MEMORY | |
| TIXML_ERROR_PARSING_ELEMENT | |
| TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME | |
| TIXML_ERROR_READING_ELEMENT_VALUE | |
| TIXML_ERROR_READING_ATTRIBUTES | |
| TIXML_ERROR_PARSING_EMPTY | |
| TIXML_ERROR_READING_END_TAG | |
| TIXML_ERROR_PARSING_UNKNOWN | |
| TIXML_ERROR_PARSING_COMMENT | |
| TIXML_ERROR_PARSING_DECLARATION | |
| TIXML_ERROR_DOCUMENT_EMPTY | |
| TIXML_ERROR_STRING_COUNT | |
| enum | { TIXML_NO_ERROR = 0, TIXML_ERROR, TIXML_ERROR_OPENING_FILE, TIXML_ERROR_OUT_OF_MEMORY, TIXML_ERROR_PARSING_ELEMENT, TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME, TIXML_ERROR_READING_ELEMENT_VALUE, TIXML_ERROR_READING_ATTRIBUTES, TIXML_ERROR_PARSING_EMPTY, TIXML_ERROR_READING_END_TAG, TIXML_ERROR_PARSING_UNKNOWN, TIXML_ERROR_PARSING_COMMENT, TIXML_ERROR_PARSING_DECLARATION, TIXML_ERROR_DOCUMENT_EMPTY, TIXML_ERROR_STRING_COUNT } |
Protected Member Functions | |
| virtual void | StreamOut (TIXML_OSTREAM *) const =0 |
| virtual const char * | Parse (const char *p)=0 |
Static Protected Member Functions | |
| static const char * | SkipWhiteSpace (const char *) |
| static bool | IsWhiteSpace (int c) |
| static bool | StreamWhiteSpace (TIXML_ISTREAM *in, TIXML_STRING *tag) |
| static bool | StreamTo (TIXML_ISTREAM *in, int character, TIXML_STRING *tag) |
| static const char * | ReadName (const char *p, TIXML_STRING *name) |
| static const char * | ReadText (const char *in, TIXML_STRING *text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase) |
| static const char * | GetEntity (const char *in, char *value) |
| static const char * | GetChar (const char *p, char *value) |
| static void | PutString (const TIXML_STRING &str, TIXML_OSTREAM *out) |
| static void | PutString (const TIXML_STRING &str, TIXML_STRING *out) |
| static bool | StringEqual (const char *p, const char *endTag, bool ignoreCase) |
Static Protected Attributes | |
| static const char * | errorString [TIXML_ERROR_STRING_COUNT] |
Private Types | |
| NUM_ENTITY = 5 | |
| MAX_ENTITY_LENGTH = 6 | |
| enum | { NUM_ENTITY = 5, MAX_ENTITY_LENGTH = 6 } |
Static Private Attributes | |
| static Entity | entity [NUM_ENTITY] |
| static bool | condenseWhiteSpace |
Friends | |
| class | TiXmlNode |
| class | TiXmlElement |
| class | TiXmlDocument |
Classes | |
| struct | Entity |
| class | StringToBuffer |
It does little except to establish that TinyXml classes can be printed and provide some utility functions.
In XML, the document and elements can contain other elements and other types of nodes.
A Document can contain: Element (container or leaf) Comment (leaf) Unknown (leaf) Declaration( leaf ) An Element can contain: Element (container or leaf) Text (leaf) Attributes (not on tree) Comment (leaf) Unknown (leaf) A Decleration contains: Attributes (not on tree)
anonymous enum [protected] |
| TiXmlBase::TiXmlBase | ( | ) | [inline] |
| virtual TiXmlBase::~TiXmlBase | ( | ) | [inline, virtual] |
| static const char* TiXmlBase::GetChar | ( | const char * | p, | |
| char * | value | |||
| ) | [inline, static, protected] |
| static const char* TiXmlBase::GetEntity | ( | const char * | in, | |
| char * | value | |||
| ) | [static, protected] |
| static bool TiXmlBase::IsWhiteSpace | ( | int | c | ) | [inline, static, protected] |
| static bool TiXmlBase::IsWhiteSpaceCondensed | ( | ) | [inline, static] |
Return the current white space setting.
| virtual const char* TiXmlBase::Parse | ( | const char * | p | ) | [protected, pure virtual] |
Implemented in TiXmlAttribute, TiXmlElement, TiXmlComment, TiXmlText, TiXmlDeclaration, TiXmlUnknown, and TiXmlDocument.
| virtual void TiXmlBase::Print | ( | FILE * | cfile, | |
| int | depth | |||
| ) | const [pure virtual] |
All TinyXml classes can print themselves to a filestream.
This is a formatted print, and will insert tabs and newlines.
(For an unformatted stream, use the << operator.)
Implemented in TiXmlAttribute, TiXmlElement, TiXmlComment, TiXmlText, TiXmlDeclaration, TiXmlUnknown, and TiXmlDocument.
| static void TiXmlBase::PutString | ( | const TIXML_STRING & | str, | |
| TIXML_STRING * | out | |||
| ) | [static, protected] |
| static void TiXmlBase::PutString | ( | const TIXML_STRING & | str, | |
| TIXML_OSTREAM * | out | |||
| ) | [static, protected] |
| static const char* TiXmlBase::ReadName | ( | const char * | p, | |
| TIXML_STRING * | name | |||
| ) | [static, protected] |
| static const char* TiXmlBase::ReadText | ( | const char * | in, | |
| TIXML_STRING * | text, | |||
| bool | ignoreWhiteSpace, | |||
| const char * | endTag, | |||
| bool | ignoreCase | |||
| ) | [static, protected] |
| static void TiXmlBase::SetCondenseWhiteSpace | ( | bool | condense | ) | [inline, static] |
The world does not agree on whether white space should be kept or not.
In order to make everyone happy, these global, static functions are provided to set whether or not TinyXml will condense all white space into a single space or not. The default is to condense. Note changing these values is not thread safe.
| static const char* TiXmlBase::SkipWhiteSpace | ( | const char * | ) | [static, protected] |
| virtual void TiXmlBase::StreamOut | ( | TIXML_OSTREAM * | ) | const [protected, pure virtual] |
Implemented in TiXmlAttribute, TiXmlElement, TiXmlComment, TiXmlText, TiXmlDeclaration, TiXmlUnknown, and TiXmlDocument.
| static bool TiXmlBase::StreamTo | ( | TIXML_ISTREAM * | in, | |
| int | character, | |||
| TIXML_STRING * | tag | |||
| ) | [static, protected] |
| static bool TiXmlBase::StreamWhiteSpace | ( | TIXML_ISTREAM * | in, | |
| TIXML_STRING * | tag | |||
| ) | [static, protected] |
| static bool TiXmlBase::StringEqual | ( | const char * | p, | |
| const char * | endTag, | |||
| bool | ignoreCase | |||
| ) | [static, protected] |
friend class TiXmlDocument [friend] |
Reimplemented in TiXmlNode.
friend class TiXmlElement [friend] |
friend class TiXmlNode [friend] |
bool TiXmlBase::condenseWhiteSpace [static, private] |
Entity TiXmlBase::entity[NUM_ENTITY] [static, private] |
const char* TiXmlBase::errorString[TIXML_ERROR_STRING_COUNT] [static, protected] |
