TiXmlAttribute Class Reference

An attribute is a name-value pair. More...

#include <tinyxml.h>

Inheritance diagram for TiXmlAttribute:

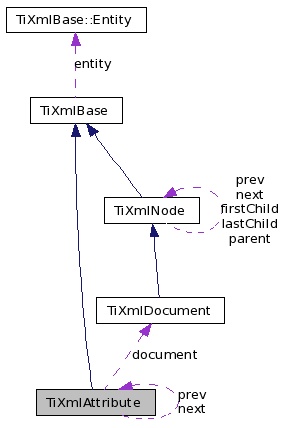

[legend]Collaboration diagram for TiXmlAttribute:

[legend]List of all members.

Public Member Functions
	TiXmlAttribute ()
	Construct an empty attribute.
	TiXmlAttribute (const std::string &_name, const std::string &_value)
	std::string constructor.
	TiXmlAttribute (const char *_name, const char *_value)
	Construct an attribute with a name and value.
const char *	Name () const
	Return the name of this attribute.
const char *	Value () const
	Return the value of this attribute.
const int	IntValue () const
	Return the value of this attribute, converted to an integer.
const double	DoubleValue () const
	Return the value of this attribute, converted to a double.
void	SetName (const char *_name)
	Set the name of this attribute.
void	SetValue (const char *_value)
	Set the value.
void	SetIntValue (int value)
	Set the value from an integer.
void	SetDoubleValue (double value)
	Set the value from a double.
void	SetName (const std::string &_name)
	STL std::string form.
void	SetValue (const std::string &_value)
	STL std::string form.
TiXmlAttribute *	Next () const
	Get the next sibling attribute in the DOM. Returns null at end.
TiXmlAttribute *	Previous () const
	Get the previous sibling attribute in the DOM. Returns null at beginning.
bool	operator== (const TiXmlAttribute &rhs) const
bool	operator< (const TiXmlAttribute &rhs) const
bool	operator> (const TiXmlAttribute &rhs) const
virtual const char *	Parse (const char *p)
virtual void	Print (FILE *cfile, int depth) const
	All TinyXml classes can print themselves to a filestream.
virtual void	StreamOut (TIXML_OSTREAM *out) const
void	SetDocument (TiXmlDocument *doc)
Private Attributes
TiXmlDocument *	document
TIXML_STRING	name
TIXML_STRING	value
TiXmlAttribute *	prev
TiXmlAttribute *	next
Friends
class	TiXmlAttributeSet

---

Detailed Description

An attribute is a name-value pair.

Elements have an arbitrary number of attributes, each with a unique name.

Note:

The attributes are not TiXmlNodes, since they are not part of the tinyXML document object model. There are other suggested ways to look at this problem.

Attributes have a parent

---

Constructor & Destructor Documentation

TiXmlAttribute::TiXmlAttribute

(

)

[inline]

Construct an empty attribute.

TiXmlAttribute::TiXmlAttribute	(	const std::string &	_name,
		const std::string &	_value
	)			[inline]

std::string constructor.

TiXmlAttribute::TiXmlAttribute	(	const char *	_name,
		const char *	_value
	)			[inline]

Construct an attribute with a name and value.

---

Member Function Documentation

const double TiXmlAttribute::DoubleValue

(

)

const

Return the value of this attribute, converted to a double.

const int TiXmlAttribute::IntValue

(

)

const

Return the value of this attribute, converted to an integer.

const char* TiXmlAttribute::Name

(

)

const [inline]

Return the name of this attribute.

TiXmlAttribute* TiXmlAttribute::Next

(

)

const

Get the next sibling attribute in the DOM. Returns null at end.

bool TiXmlAttribute::operator<

(

const TiXmlAttribute &

rhs

)

const [inline]

bool TiXmlAttribute::operator==

(

const TiXmlAttribute &

rhs

)

const [inline]

bool TiXmlAttribute::operator>

(

const TiXmlAttribute &

rhs

)

const [inline]

virtual const char* TiXmlAttribute::Parse

(

const char *

p

)

[virtual]

Implements TiXmlBase.

TiXmlAttribute* TiXmlAttribute::Previous

(

)

const

Get the previous sibling attribute in the DOM. Returns null at beginning.

virtual void TiXmlAttribute::Print	(	FILE *	cfile,
		int	depth
	)			const [virtual]

All TinyXml classes can print themselves to a filestream.

This is a formatted print, and will insert tabs and newlines.

(For an unformatted stream, use the << operator.)

Implements TiXmlBase.

void TiXmlAttribute::SetDocument

(

TiXmlDocument *

doc

)

[inline]

void TiXmlAttribute::SetDoubleValue

(

double

value

)

Set the value from a double.

void TiXmlAttribute::SetIntValue

(

int

value

)

Set the value from an integer.

void TiXmlAttribute::SetName

(

const std::string &

_name

)

[inline]

STL std::string form.

void TiXmlAttribute::SetName

(

const char *

_name

)

[inline]

Set the name of this attribute.

void TiXmlAttribute::SetValue

(

const std::string &

_value

)

[inline]

STL std::string form.

void TiXmlAttribute::SetValue

(

const char *

_value

)

[inline]

Set the value.

virtual void TiXmlAttribute::StreamOut

(

TIXML_OSTREAM *

out

)

const [virtual]

Implements TiXmlBase.

const char* TiXmlAttribute::Value

(

)

const [inline]

Return the value of this attribute.

---

Friends And Related Function Documentation

friend class TiXmlAttributeSet [friend]

---

Member Data Documentation

TiXmlDocument* TiXmlAttribute::document [private]

TIXML_STRING TiXmlAttribute::name [private]

TiXmlAttribute* TiXmlAttribute::next [private]

TiXmlAttribute* TiXmlAttribute::prev [private]

TIXML_STRING TiXmlAttribute::value [private]

---

The documentation for this class was generated from the following file:

• aedGUI/tinyxml/tinyxml.h

---
